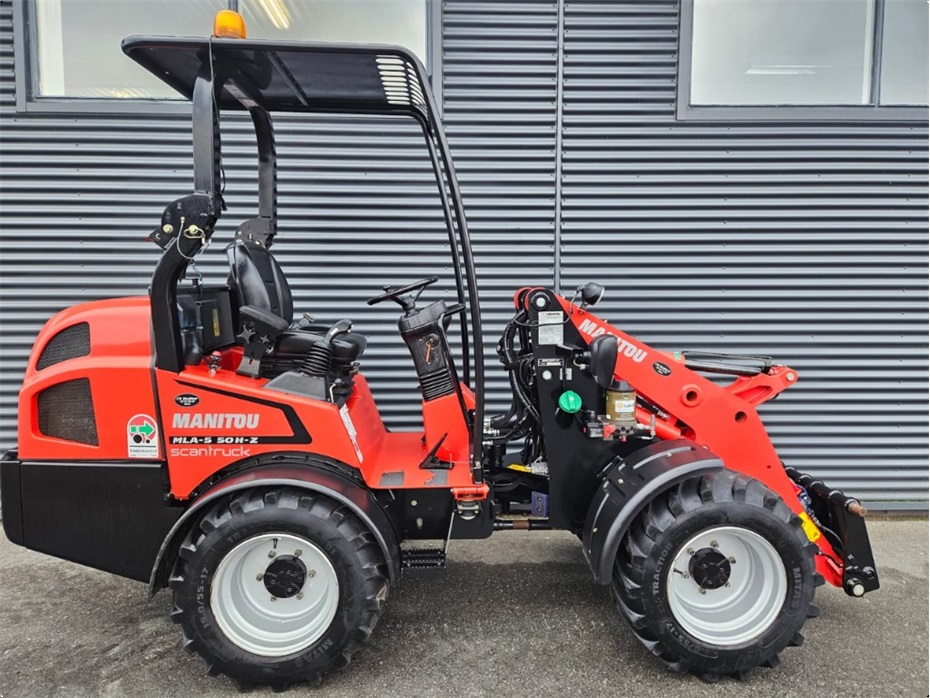

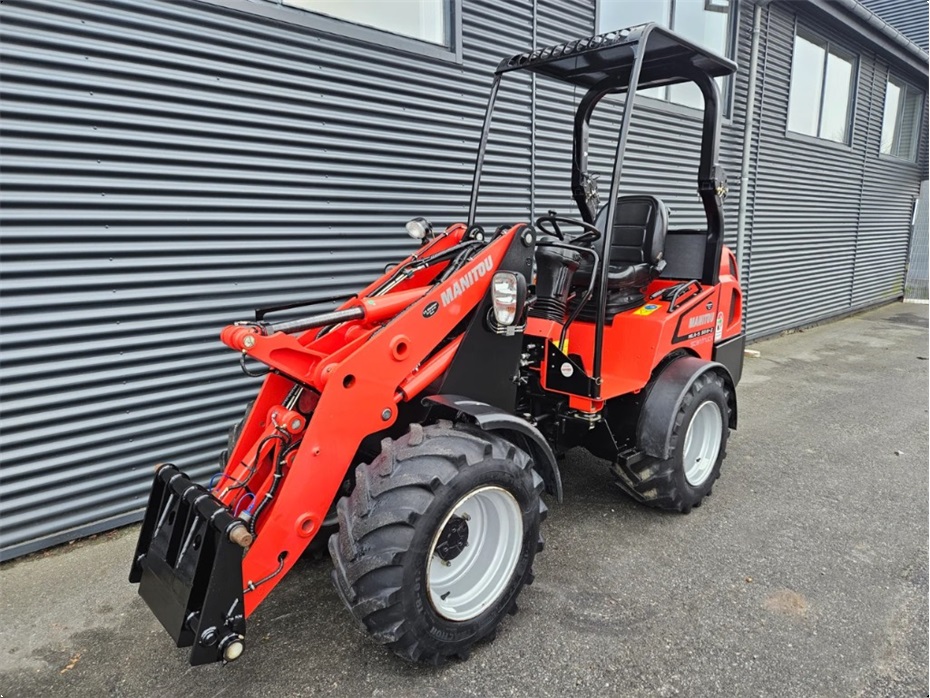

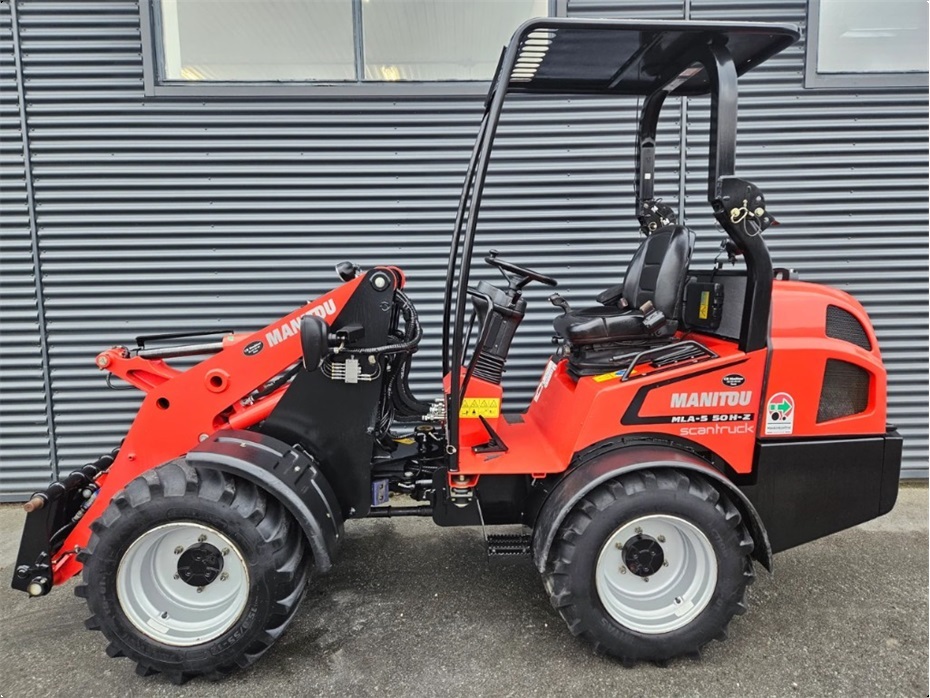

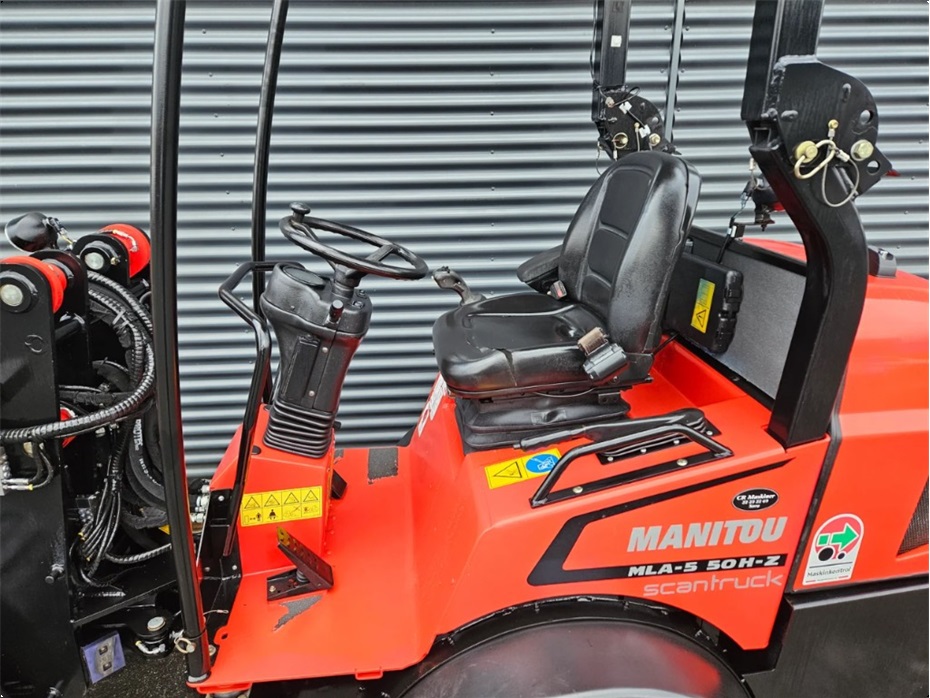

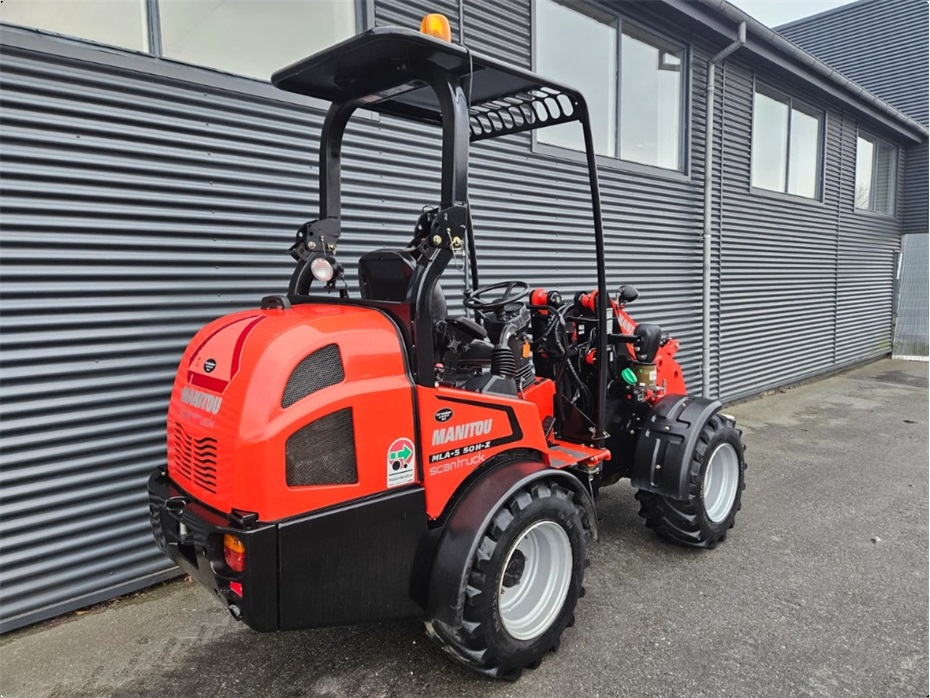

Manitou MLA 5-50 HZ
Description
The Manitou MLA 5-50 HZ is a compact articulated loader designed for construction, agriculture, and material handling. It offers high maneuverability, efficient hydraulic performance, and operator comfort. With a hydrostatic transmission, this machine ensures precise control and smooth operation.
The Yanmar Stage 3A engine provides a balance of power and fuel efficiency. Its ROPS/FOPS-certified cabin enhances safety, and various hydraulic and electronic options improve productivity.
Specifications
| Stock Number | PR-B2JGLA |
|---|---|
| Brand | Manitou |
| Model | MLA 5-50 HZ |
| Year | 2019 |
| Operating Hours | 1500 h |
| Engine | Yanmar 4TNV88 |
| Engine Power | 47 hp (35 kW) |
| Max Torque | 137 Nm @ 1680 rpm |
| Fuel Tank Capacity | 68 L |
| Hydraulic System | Gear pump |
| Hydraulic Flow | 57 L/min @ 207 bar |
| Drive Hydraulic Pressure | 410 bar |
| Transmission | Hydrostatic |
| Max Speed | 20 km/h |
| Articulation Angle | 45° |
| Operating Weight | 3,502 kg |
| Tipping Load (Straight, Bucket) | 2,151 kg |
| Tipping Load (Full Turn, Bucket) | 1,433 kg |
| Tipping Load (Straight, Forks) | 1,669 kg |
| Tipping Load (Full Turn, Forks) | 1,111 kg |
| Lifting Height (Bucket Pivot Point) | 3.06 m |
| Ground Clearance | 0.27 m |
| Overall Length | 3.79 m |
| Overall Width | 1.33 m |
| Overall Height (Cab) | 2.32 m |
| Tilt-Up Angle | 45° |
| Tilt-Down Angle | 47° |
