Case 321F
Description

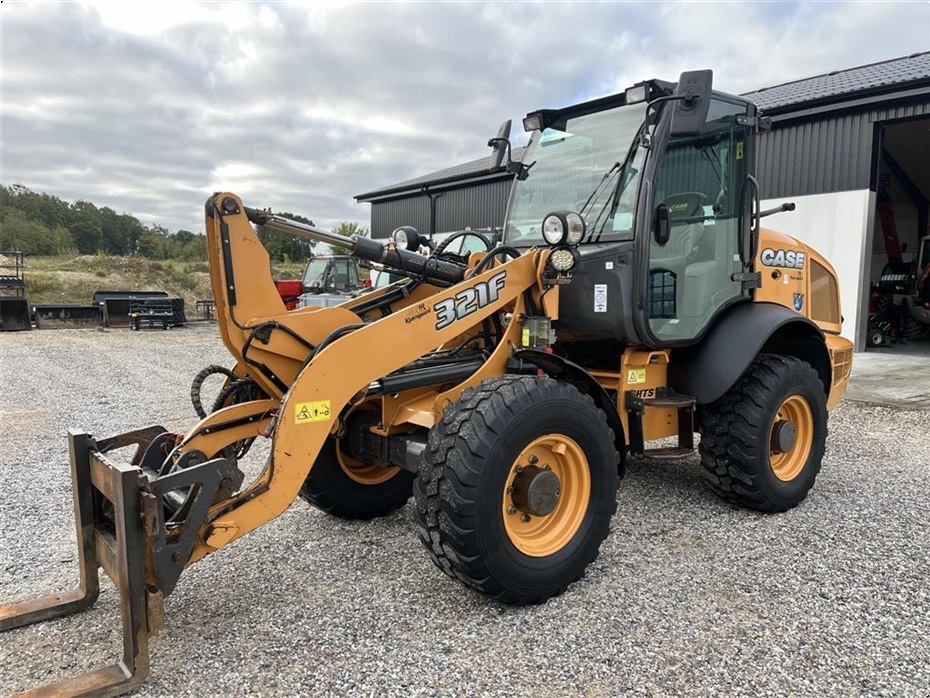

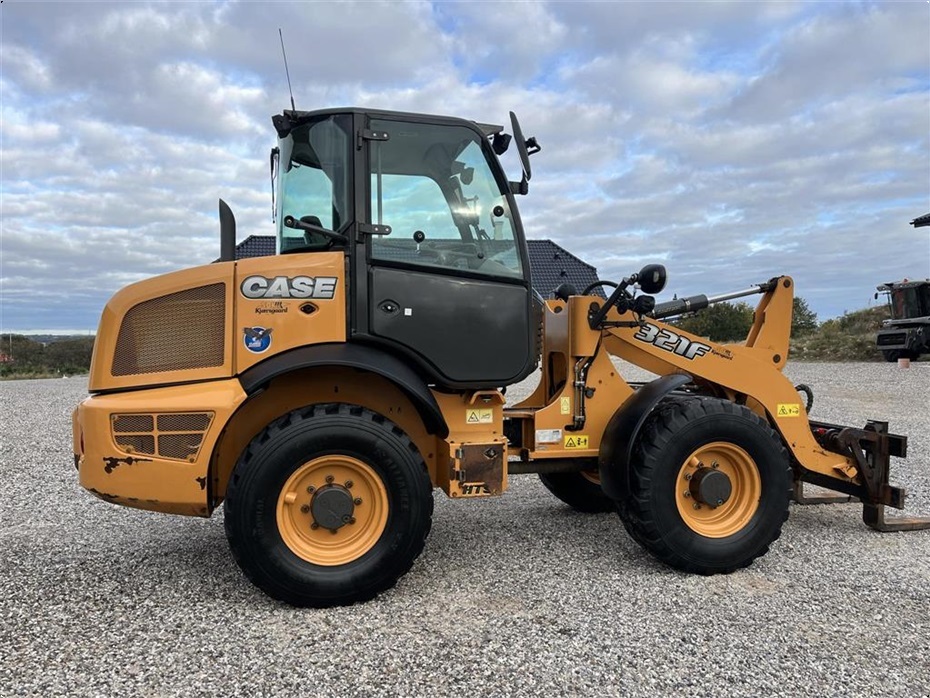

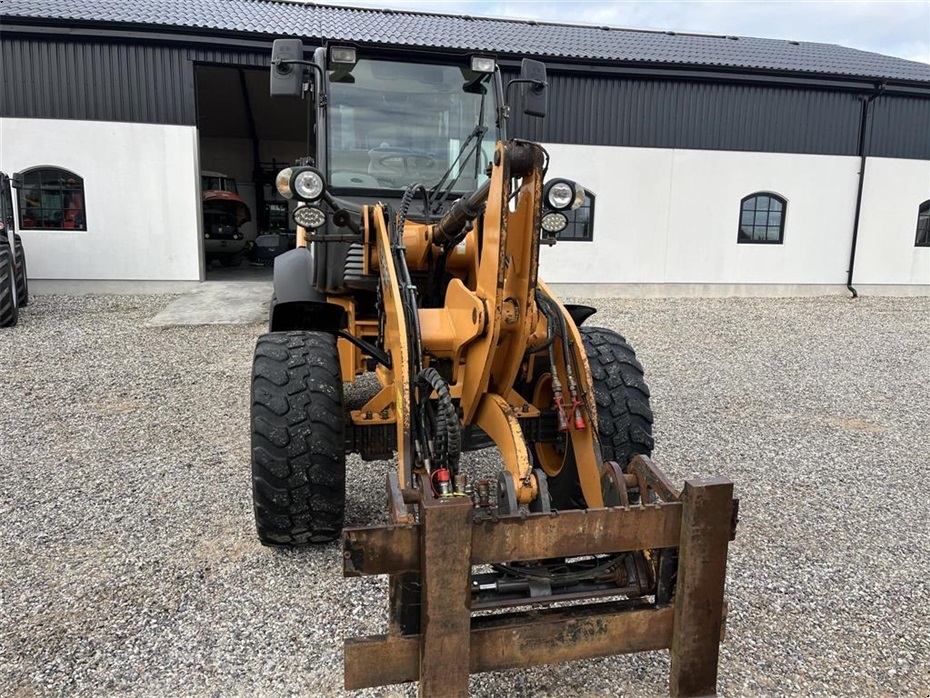

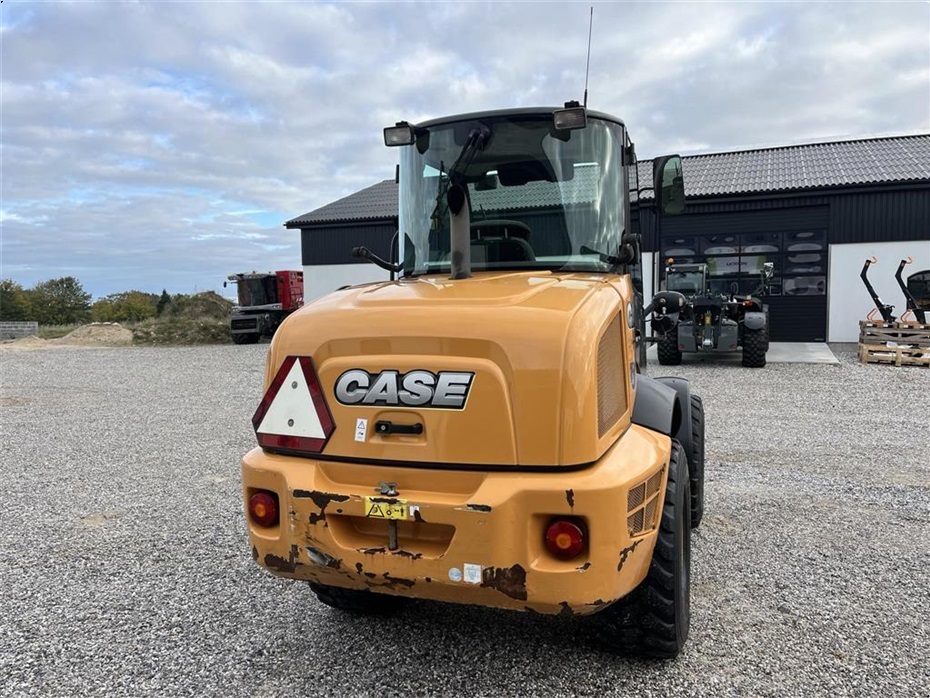

The Case 321F is a compact, articulated wheel loader from the F Series Evolution lineup. It is designed for versatility in construction, agriculture, and landscaping. With a powerful 74 hp FPT F5H engine and a hydrostatic transmission, this loader offers excellent maneuverability and fuel efficiency.

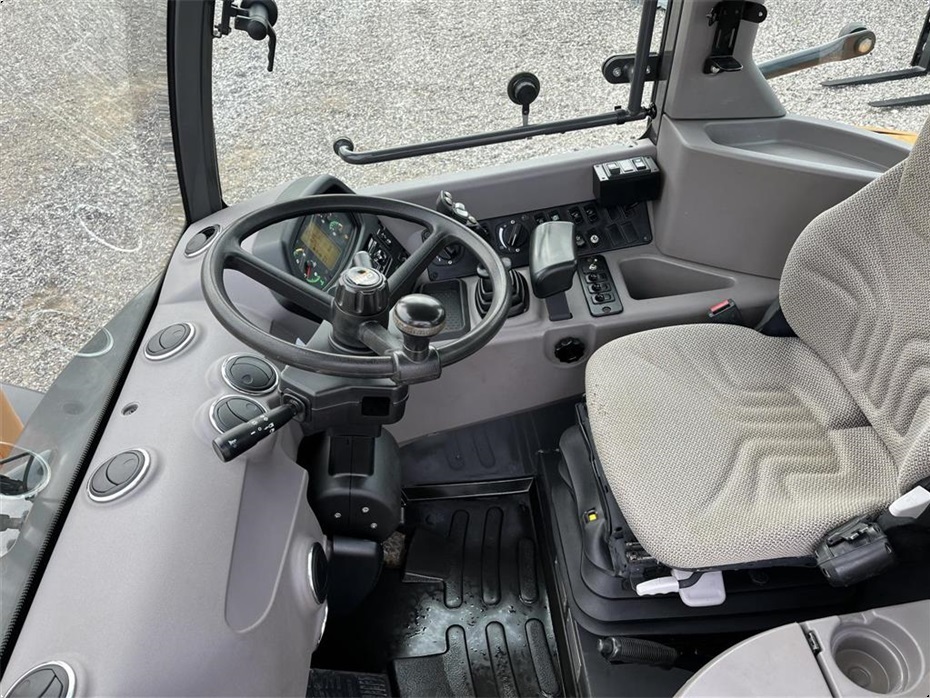

It features a spacious, ergonomic cab with ROPS/FOPS protection, a color display, and an adjustable steering column. The bucket capacity ranges from 1.0 to 1.3 m³, making it suitable for material handling and loading tasks
Specifications
Technical Specifications
| Category | Details |
|---|---|
| Year | 2016 |
| Working Hours | 3,895 |
| Engine | FPT F5H FL463 A F001 (4-cylinder) |
| Power | 74 hp (Gross) / 70 hp (Net) |
| Displacement | 3.4 L |
| Fuel Type | Diesel |
| Transmission | Hydrostatic (2 forward, 2 reverse gears) |
| Max Speed | 20 km/h |
| Bucket Capacity | 1.0 – 1.3 m³ |
| Breakout Force | 4,570 kg |
| Dump Clearance | 3.3 m |
| Operating Weight | 6,033 kg |
| Dimensions (L × W × H) | 5.95 × 1.86 × 2.68 m |
| Wheelbase | 2.22 m |
| Ground Clearance | 0.49 m |
| Max Hinge Pin Height | 3.4 m |
| Hydraulic Flow | 85 L/min (gear pump) |
| Max Hydraulic Pressure | 250 bar |
| Fuel Tank Capacity | 86 L |
| Tire Size (OEM) | 405/70 R20 |
| Max Torque | 316 Nm @ 1,400 rpm |
