Case IH JX90
Description

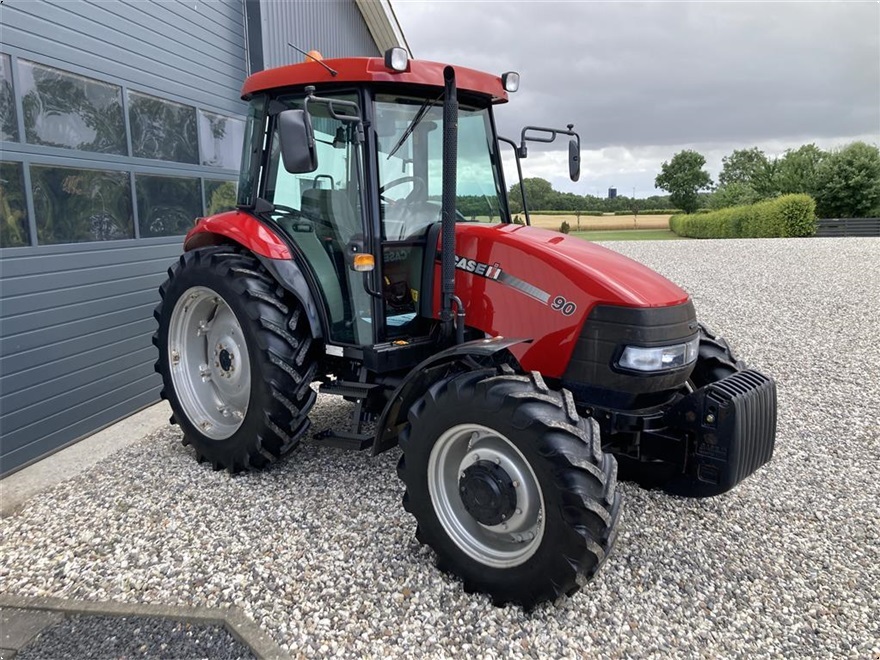

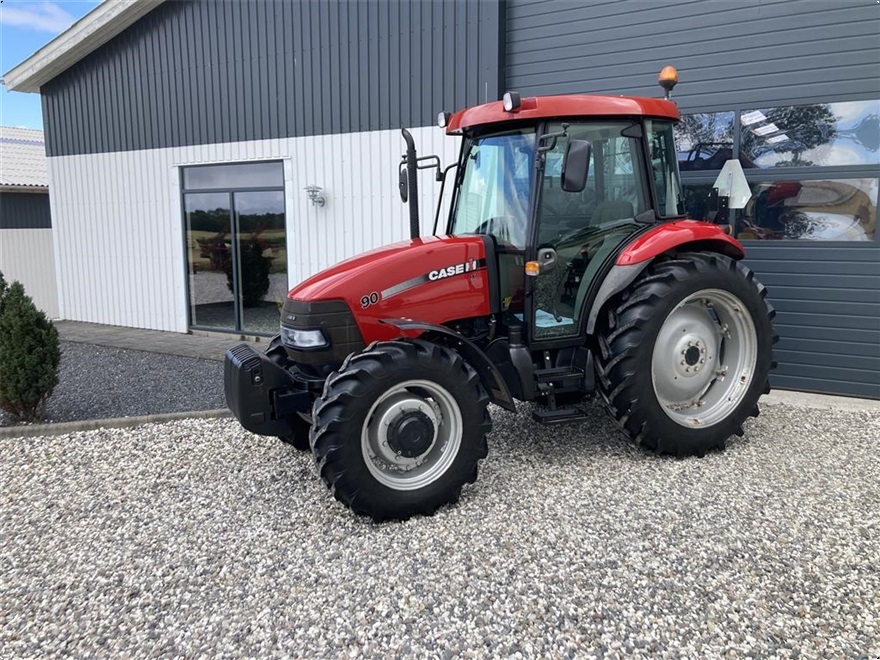

The Case IH JX90 is a robust and reliable utility tractor from the JX Series. With 10890 operating hours, it has proven to be a long-lasting workhorse. This tractor is powered by a 4-cylinder diesel engine that delivers good performance for both small and medium-sized farming operations. The 12.4R24 front tires show 20% wear, and the 13.6R38 rear tires also show 20% wear. It is suitable for a variety of agricultural tasks, offering efficiency and durability.
Specifications
| Stock Number | PR-P87CW |
|---|---|
| Model | Case IH JX90 |
| Year | 2009 |
| Operating Hours | 10890 hours |
| Engine Type | 4 cylinders, Diesel |
| Displacement | 3.9 L |
| Power | 90 hp (67 kW) |
| Max Torque | 350 Nm |
| Transmission | 12-speed mechanical |
| Max Speed | 40 km/h |
| Weight | 3.7 tonnes |
| Fuel Tank Capacity | 130 L |
| Front Tire Dimensions | 12.4R24 |
| Rear Tire Dimensions | 13.6R38 |
| Tire Wear | Front: 20%, Rear: 20% |
| Overall Length | 3,850 mm |
| Overall Width | 2,250 mm |
| Overall Height | 2,400 mm |
| Wheelbase | 2,350 mm |
| Ground Clearance | 400 mm |
| Front Lift Capacity | 1,500 kg |
| Rear Lift Capacity | 3,000 kg |
| Hydraulic Flow Rate | 60 L/min |
| Hydraulic Pumps | 1 piston pump |
| Number of Valves | 2 |
Available Options:
-
Cab:
- Open station (no cab)
- Optional Basic cab with ventilation
-

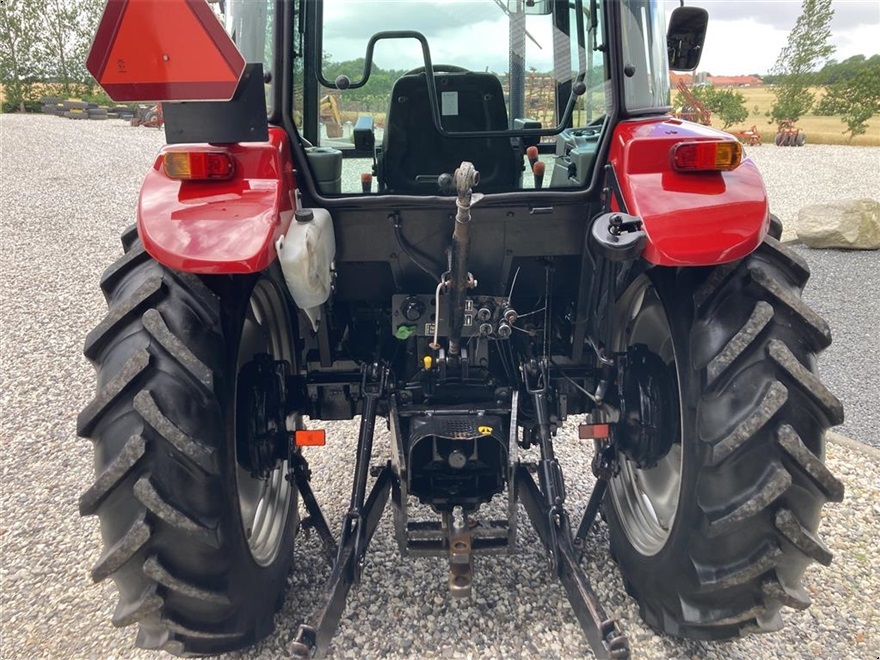

Hydraulic System:
- Standard hydraulic system (60 L/min) suitable for most farm tasks
- Rear remotes for connecting various implements
-
Transmission:
- 12-speed mechanical transmission offering flexibility for various work speeds
-
PTO:
- 540 rpm PTO for medium-duty applications
-
Braking and Safety:
- Hydraulic disc brakes for reliable and consistent braking performance
-
Axles and Tires:
- 2WD for standard agricultural work
- Large tires for better traction in most field conditions
-
Steering System:
- Power steering for ease of maneuverability
-

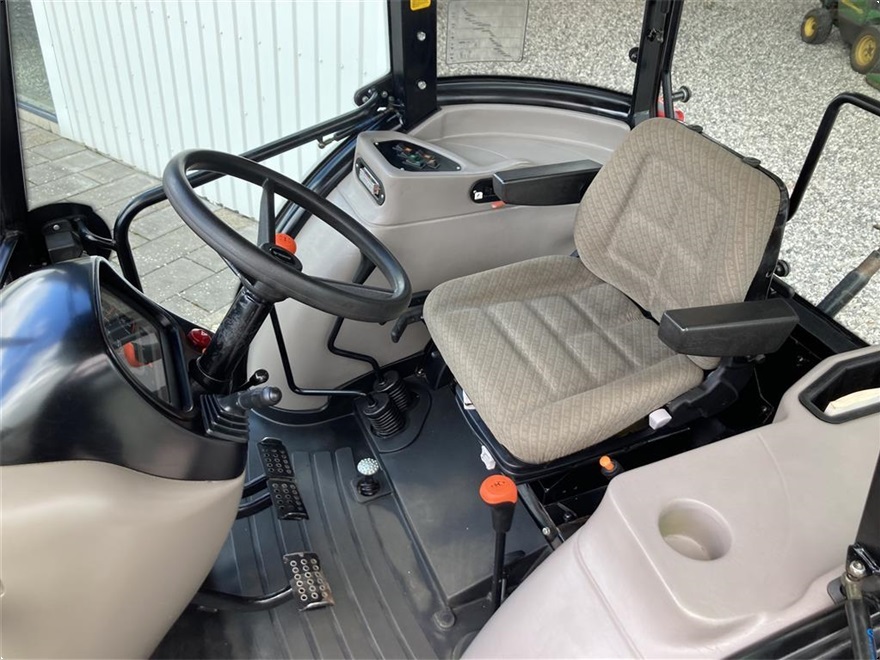

Comfort Features:
- Comfortable operator seat
- Basic audio system (radio)
