Description

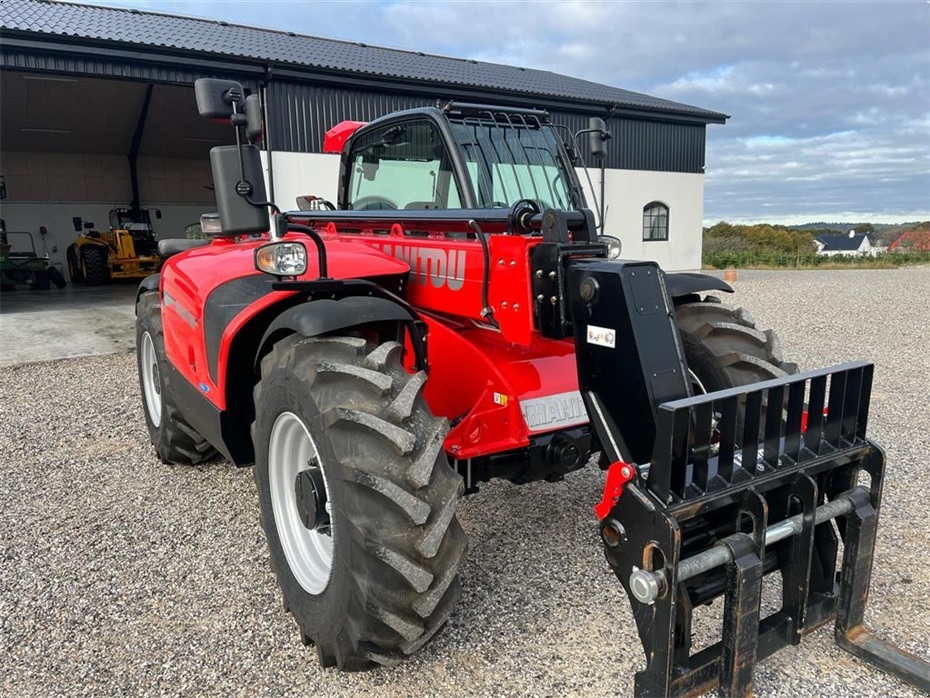

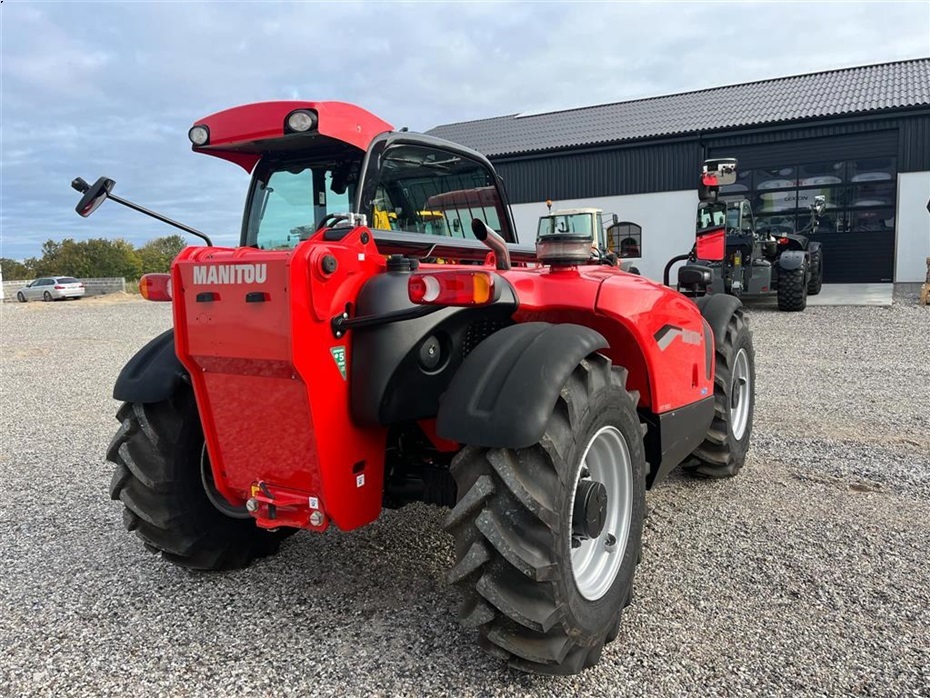

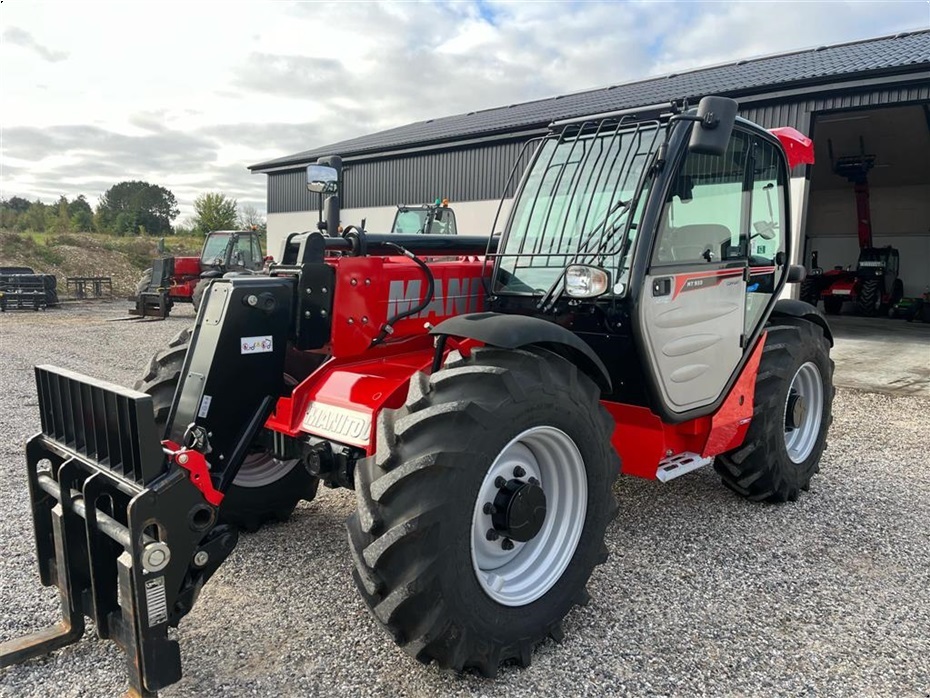

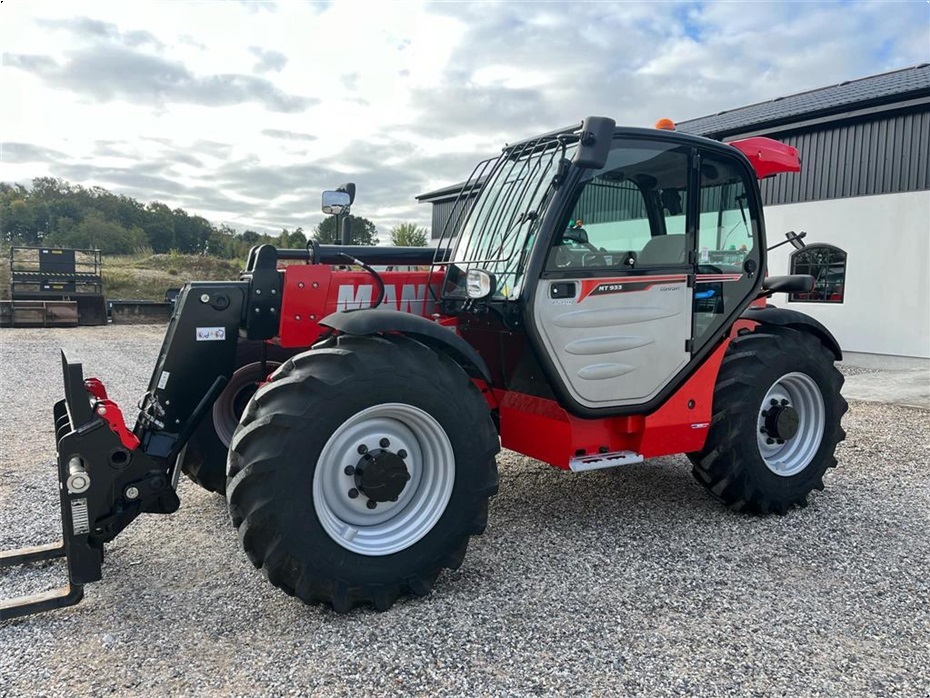

The Manitou MT 933 Easy is a compact and powerful telehandler designed for construction and industrial applications. It is particularly suitable for medium-height construction sites, offering a maximum lifting height of 9.07 meters and a load capacity of 3,300 kg.
With a Deutz TD 3.6 L engine (75 hp / 55 kW, Stage V emission standard), this machine ensures excellent performance with a maximum torque of 340 Nm at 1600 rpm. It features a torque converter transmission (4 forward and 4 reverse gears), allowing speeds of up to 24.9 km/h.

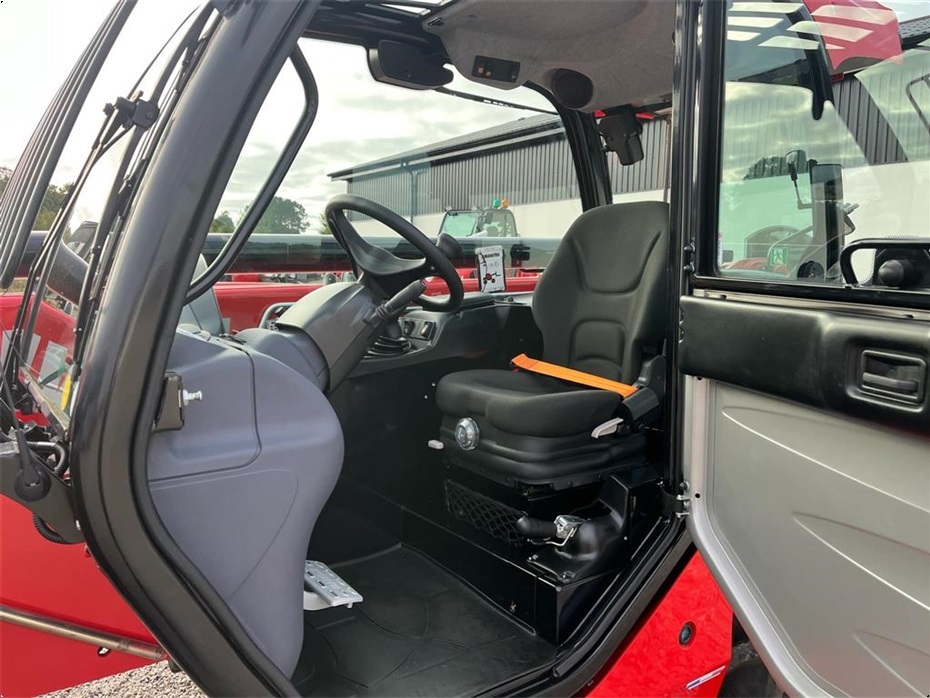

Its hydraulic system, with a pump flow of 92.7 l/min at 260 bar, provides smooth and efficient operation. The spacious cabin offers high comfort, with excellent visibility and ergonomic controls for an optimized user experience
Specifications
| Stock Number | PR-G922JMA |
|---|---|
| Brand | Manitou |
| Model | MT 933 |
| Year | 2023 |
| Hours | 20 |
| Lifting Capacity | 3,300 kg |
| Maximum Lifting Height | 9.07 m |
| Maximum Outreach | 6.35 m |
| Engine | Deutz TD 3.6 L, Stage V |
| Power | 75 hp (55 kW) |
| Torque | 340 Nm @ 1600 rpm |
| Transmission | Torque Converter (4 Forward / 4 Reverse) |
| Maximum Speed | 24.9 km/h |
| Hydraulic Flow / Pressure | 92.7 l/min - 260 bar |
| Brakes | Oil-immersed multi-disc (front & rear) |
| Weight | 7,145 kg |
| Ground Clearance | 0.45 m |
| Dimensions (L x W x H) | 4.68 m x 2.33 m x 2.30 m |
| Turning Radius | 3.80 m |
| Tire Size | 400/80-24 (Alliance) |
| Fuel Tank Capacity | 120 L |
| Hydraulic Oil Capacity | 128 L |
