Description
The Deutz-Fahr Agrotron 6140.4 TTV (2014) is a highly efficient and powerful tractor designed for both fieldwork and heavy-duty agricultural tasks. With a 140 horsepower engine and the TTV continuously variable transmission, this model provides excellent power delivery and adaptability to different field conditions. The hydraulic system is designed for high performance, offering a 115 L/min flow rate, which ensures maximum productivity when using large implements.
Equipped with 600/65R38 rear tires and 540/65R24 front tires, the Agrotron 6140.4 TTV provides excellent traction, and the tire wear of 40% at the rear and 50% at the front shows moderate usage. The tractor's comfortable cab, easy-to-use controls, and reliable lifting system make it suitable for both large-scale farming and specialized operations.
Specifications
| Stock Number | PR-2V7UF |
|---|---|
| Model | Deutz-Fahr Agrotron 6140.4 TTV |
| Year | 2014 |
| Operating Hours | 4951 hours |
| Engine Type | 4 cylinders, Diesel, turbo |
| Displacement | 6.1 L |
| Power | 140 hp (103 kW) |
| Max Torque | 610 Nm |
| Transmission | TTV (Continuously Variable Transmission) |
| Max Speed | 40 km/h |
| Weight | 6,000 kg |
| Fuel Tank Capacity | 250 L |
| Front Tire Dimensions | 540/65R24 |
| Front Tire Wear | 50% |
| Rear Tire Dimensions | 600/65R38 |
| Rear Tire Wear | 40% |
| Overall Length | 4,750 mm |
| Overall Width | 2,390 mm |
| Overall Height | 2,700 mm |
| Wheelbase | 2,550 mm |
| Ground Clearance | 450 mm |
| Front Lift Capacity | 2,500 kg |
| Rear Lift Capacity | 7,000 kg |
| Hydraulic Flow Rate | 115 L/min |
| Hydraulic Pumps | 1 piston pump + 1 gear pump |
| Number of Valves | 4 |
Available Options:
-

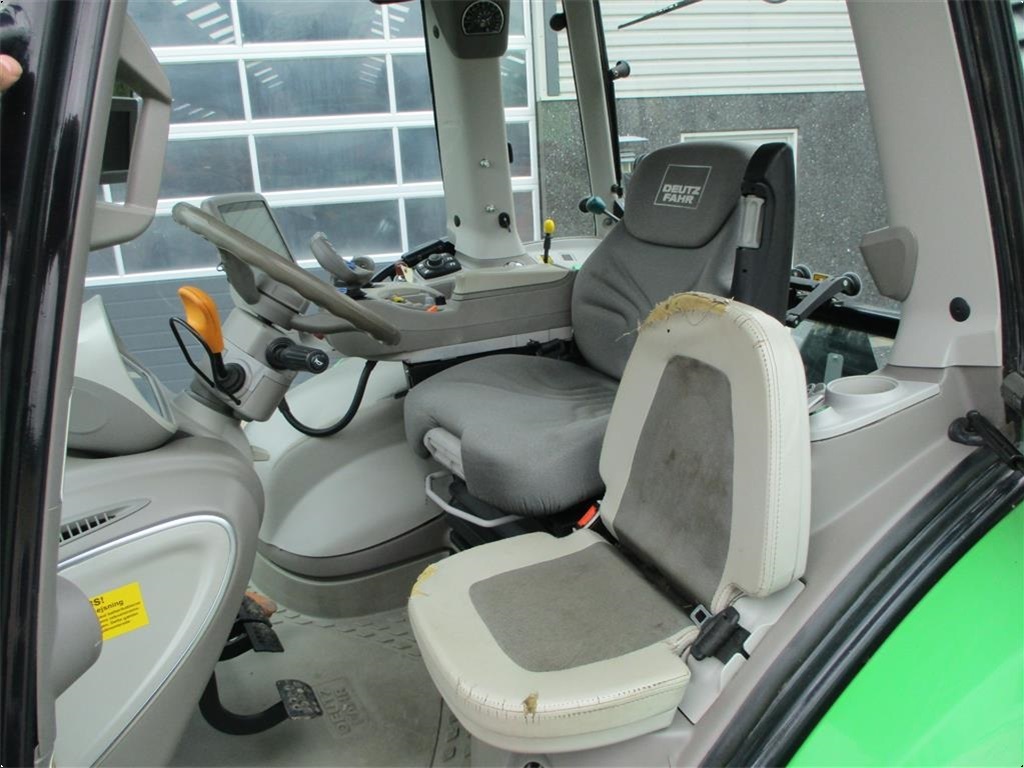

Cab:
- Deluxe Comfort Cab with air conditioning and heating
- Suspended front axle (optional) for a smooth ride in tough conditions
- Ergonomic controls for improved operator comfort
-
Hydraulic System:
- High-flow hydraulic system for demanding agricultural operations
- Electronic draft control for precision in heavy lifting
- Multiple rear remotes for flexible implement connections
-
Transmission:
- TTV continuously variable transmission for seamless power delivery
- Autoshift mode for optimized fuel efficiency during transport
-
Axles and Tires:
- Heavy-duty axles designed for high loads
- Wide tire options for various ground conditions
- Tire inflation system (optional) to enhance soil protection
-
Electronic Control System:
- ISOBUS compatibility for modern farming implement management
- GPS guidance system (optional) for precision farming
-
Power Take-Off (PTO):
- Rear PTO with 540/1000 rpm selector (standard)
- Front PTO (optional)
-
Braking and Safety:
- Hydraulic wet disc brakes for secure and efficient braking
- Electronic parking brake (optional)
-
Steering System:
- Power steering for easy maneuverability
-
Comfort Features:
- AM/FM radio and Bluetooth connectivity for entertainment
- Adjustable seat with suspension for comfort during long hours
